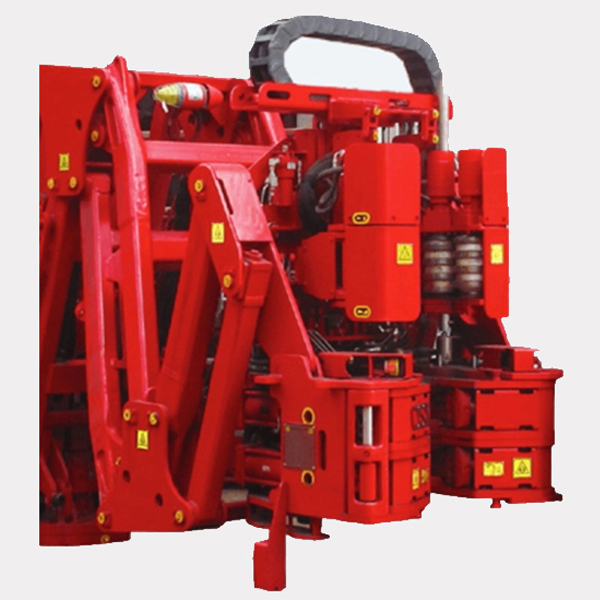

A compact iron roughneck is designed to make up and break out drill pipe connections where space, weight, or installation clearance is limited. Unlike standard or high-capacity iron roughnecks, a compact model is optimized for smaller drill floors, mobile rigs, and retrofit projects, while maintaining safe and reliable operation.
Compared with a standard iron roughneck, a compact model is usually designed with:
A smaller footprint and reduced drill-floor space requirements
Lower structural weight for easier installation
Easier integration into restricted layouts and existing hydraulic systems
Sufficient torque capacity for the target pipe size
Service clearance for jaws, cylinders, hoses, and sensors
For automation projects, optional visual monitoring or recognition functions can be discussed based on the rig control system requirements. Low-temperature applications may require specific considerations, including low-temperature seals, hydraulic hoses, suitable hydraulic oils, protection for control components, and cold-start inspections.
Internal links suggestions:
Compact iron roughnecks are particularly useful when:
Drill floor space is limited
Weight restrictions limit installation of standard equipment
Mobile or trailer-mounted rigs require reduced structural footprint
Automated or semi-automated pipe handling is desired
Retrofit projects aim to upgrade older rigs without major layout changes
Important: Compact iron roughnecks are not recommended when the required make-up or break-out torque exceeds the rated capacity, when the drill floor has sufficient space for a higher-capacity standard model, or when long-travel rail movement around the well center is required.
Internal link suggestions:
A compact iron roughneck is not limited to one rig type. The following rig types are typical applications:
Ideal for small land rigs with limited floor space, where reducing manual pipe handling and increasing safety are key priorities.
Lightweight and compact design allows easier transport, fast rig-up, and safe operation on mobile drilling platforms.
Compact iron roughnecks are suitable for retrofit projects, helping reduce manual work and integrate with existing hydraulic power units and control systems.
For wells with limited center clearance, compact iron roughnecks fit the restricted drill floor while providing sufficient torque and pipe handling capacity.
Equipment can be adapted for cold environments using:
Low-temperature seals and hydraulic hoses
Appropriate hydraulic oil selection
Electric heating or protective measures for control components
Cold-start inspection procedures
Compact iron roughnecks can be integrated into automated pipe handling workflows, with optional visual monitoring or recognition functions discussed based on the rig control system requirements.
Internal link suggestions:
Before selecting a compact iron roughneck, the following engineering parameters should be reviewed:
Torque range: Ensure rated torque meets the pipe size requirements
Pipe OD range: Verify compatibility with the intended drill pipe
Installation envelope: Confirm space and clearance on the drill floor
Hydraulic interface: Check flow, pressure, and connection compatibility
Working radius and service access: Ensure jaws, cylinders, and hoses can be serviced
Control mode: Manual, semi-automated, or fully automated operation
Low-temperature configuration: If operating in cold environments
In retrofit projects, the main challenge is often not the iron roughneck itself, but the available floor space, well center distance, hydraulic interface, and service clearance. JJC TEC can review the customer’s rig layout, pipe size range, and torque requirements before recommending a compact configuration.
Internal link suggestions:
Q: What is a compact iron roughneck used for?
A: A compact iron roughneck is used to make up and break out pipe connections on rigs where drill-floor space, weight, or installation clearance is limited. It is ideal for small land rigs, mobile rigs, and retrofit projects.
Q: Can a compact iron roughneck be used on any rig?
A: A compact iron roughneck is not limited to one rig type, but suitability depends on torque requirements, pipe size range, installation envelope, and hydraulic interface.
Q: What rig types are most suitable for a compact model?
A: Small land rigs, trailer-mounted rigs, truck-mounted rigs, retrofit projects, restricted wellhead access, low-temperature sites, and semi-automated or automated operations.
Q: How does JJC TEC support compact iron roughneck selection?
A: JJC TEC can review rig layout, pipe range, torque requirements, control mode, and low-temperature needs to recommend the optimal compact iron roughneck configuration.
Internal link suggestions in FAQ:
A compact iron roughneck is a practical choice for:
Small land rigs
Trailer-mounted rigs
Truck-mounted rigs
Restricted drill floors
Retrofit projects
Automated drilling operations
The key is not only choosing a smaller machine, but confirming that torque capacity, pipe range, hydraulic interface, installation envelope, and service clearance match the rig’s requirements.
JJC TEC can help drilling contractors review rig layout, pipe size range, torque requirements, control mode, and low-temperature needs before recommending a compact iron roughneck configuration. If you are upgrading an existing rig or planning a mobile rig package, contact JJC TEC for technical matching, part sourcing, and quotation support.
