NOV Top Drive Spare Parts for Planned Overhaul: What to Inspect Before Ordering
A planned top drive overhaul can still lose days to one small item.The main components may already be included in the budget, yet work stops because a seal kit was incomplete, a connector revision did not match, or a bearing was ordered only after the gearbox was opened. These are not unusual purchasing problems. They happen when the spare-parts list is treated as a catalogue exercise instead of part of the overhaul plan.
For NOV TDS top drive systems, the better approach is to build the list in stages. Start with the exact equipment configuration. Review operating records and known faults. Then separate the parts that should be available before disassembly from those that can be confirmed after inspection.
This guide is intended for maintenance engineers, rig equipment teams and procurement personnel preparing an overhaul for TDS-11SA, TDS-8SA and other NOV TDS configurations. It does not replace the equipment manual or an engineering inspection. Its purpose is practical: to help the team prepare a clearer request and reduce avoidable waiting during the job.
Why Spare-Parts Planning Should Start Before Disassembly
An overhaul creates a short, expensive window. The equipment is offline, the workshop schedule is fixed, and several teams may be waiting for inspection results. If the first serious parts review begins only after teardown, the delivery time for an overlooked component becomes part of the shutdown.
Planning earlier does not mean ordering every possible item. It means deciding which parts fall into four groups:
- items expected to be replaced during the planned work;
- items that should be ordered only if inspection confirms wear or damage;
- low-cost contingency items that can prevent a work stoppage;
- long-lead or configuration-sensitive items that need early technical confirmation.
That distinction is important. A complete list is not necessarily a long list. It is a list connected to the actual condition of the top drive and the sequence of the overhaul.
Confirm the Exact Top Drive and the Scope of Work
“Parts for a TDS-11SA” is a starting point, not a complete specification.
Before sending an RFQ, record the full model, serial number and nameplate information. Check the installed configuration against the parts book, previous maintenance records and any modifications made during earlier repairs. Two units with the same model designation may not have identical service histories, control components or revisions.
The overhaul scope also changes the list. A washpipe leak, repeated hydraulic pressure loss and a full gearbox overhaul require three very different purchasing plans. The team should agree on the work boundary before asking suppliers to quote.
Useful background information includes:
- top drive model and serial number;
- operating hours, when available;
- latest inspection and repair records;
- current alarms, leakage points or abnormal noise;
- photos of the nameplate and installed component;
- known upgrades or control-system changes;
- expected overhaul date and required delivery date.
This information helps the supplier check the request. It also reduces the chance that procurement compares quotations for parts that only appear to be the same.
Review the Spare-Parts List by System

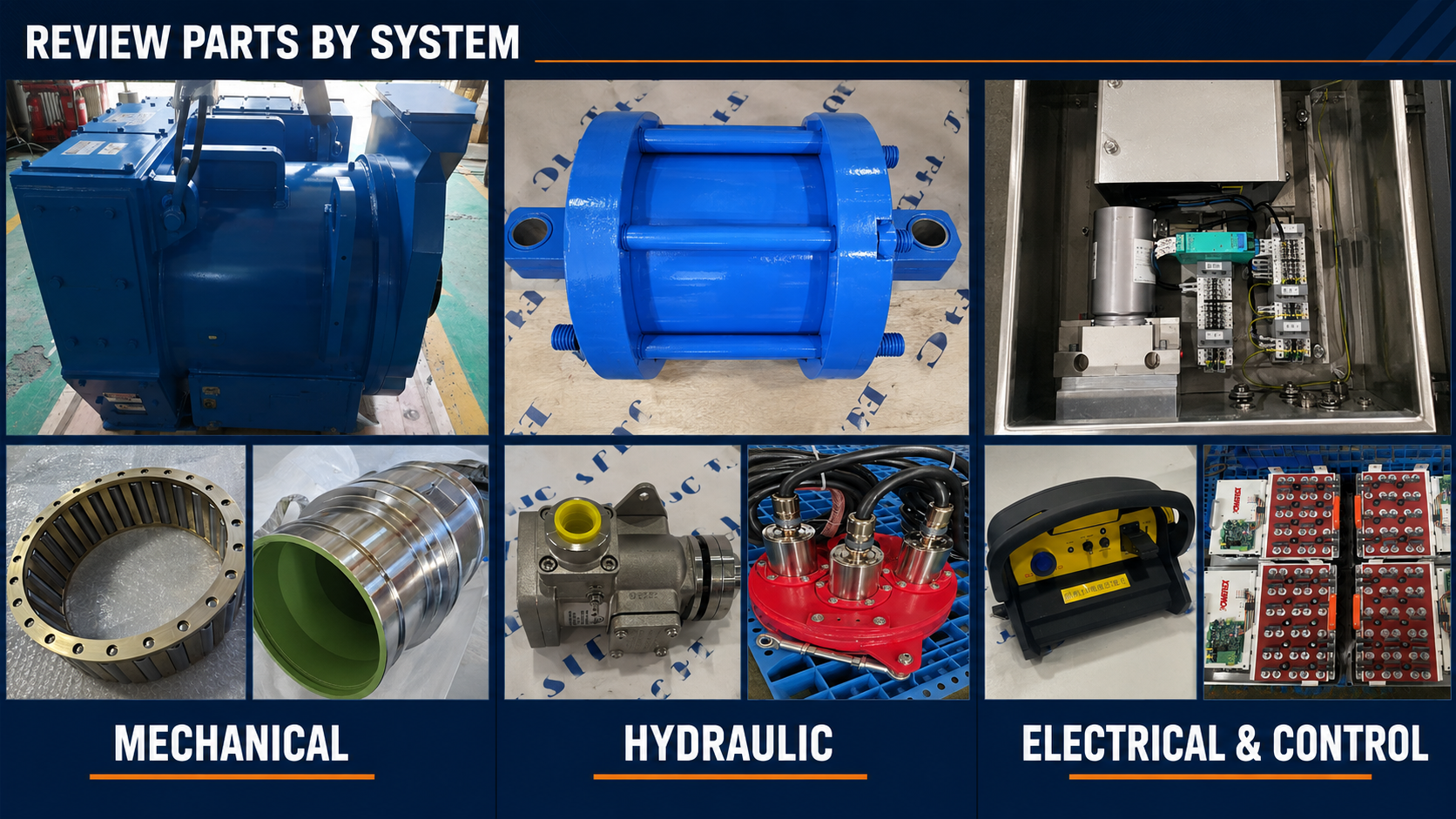

Instead of working through a long mixed spreadsheet, divide the top drive into functional groups. This makes the list easier for maintenance, procurement and the supplier to review together.
1. Rotating and Load-Path Components
This group includes components that transmit torque, carry load or maintain alignment. Depending on the inspection scope, the review may cover the main shaft, gears, bearings, brake components, bail pins, bushings, retainers and related fasteners.

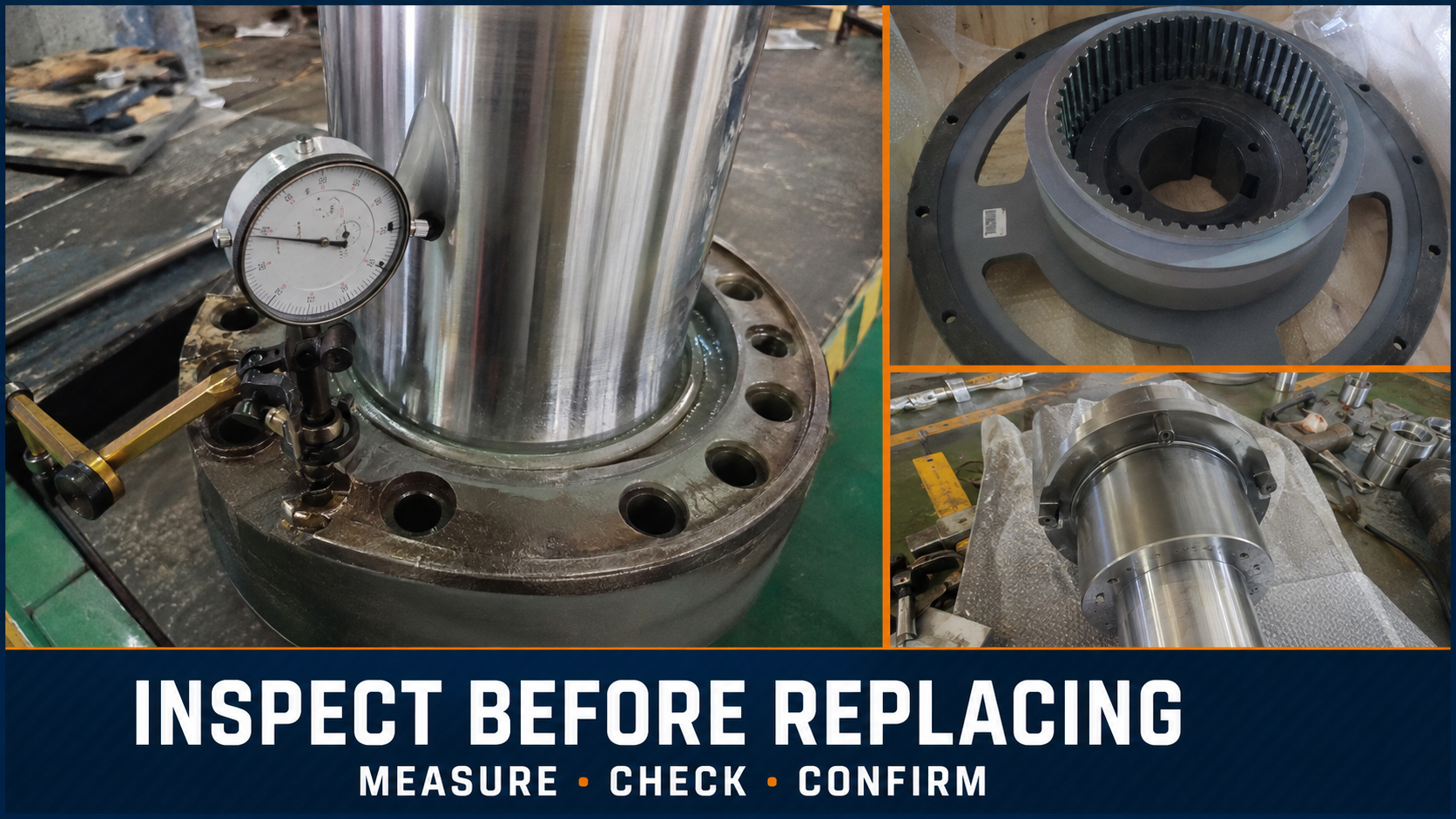

Do not decide on appearance alone. Inspection may require dimensional checks, backlash or clearance measurement, surface examination and review of wear patterns. A bearing that feels acceptable before cleaning may tell a different story after the assembly is opened and inspected.
When ordering a mating component, confirm whether the corresponding contact surface also needs inspection. Replacing one side of a worn pair without checking the other can shorten the useful life of the new part.
2. Washpipe, Fluid Path and IBOP Parts
The washpipe area is exposed to pressure, rotation and abrasive drilling fluid. Packing, seals, sleeves and related hardware should be reviewed as a set rather than as unrelated line items. If leakage has been reported, record the location and condition before the equipment is cleaned.
The fluid path may also include the S-pipe or gooseneck and connecting hardware. For IBOP-related work, identify whether the request is for a complete assembly, a repair kit or individual sealing and actuation parts. Service conditions and certification requirements should be stated in the RFQ instead of assumed.
A practical check is to compare the ordered kit contents with the actual overhaul task. The correct kit name is not enough if a small seal, spring or retaining item needed for reassembly is missing.
3. Hydraulic Components
Hydraulic problems often appear as slow response, unstable pressure, leakage or excessive heat. The cause may sit in the pump, filter assembly, cylinder, hose, valve, seal or connection—not necessarily in the first component that shows a symptom.
Review contamination findings and hose condition before finalizing the list. If a failed pump has released debris into the circuit, installing a new pump without cleaning the system and checking filtration leaves part of the problem in place. Likewise, a new seal kit will not correct a damaged rod or worn sealing surface.
For hoses and cylinders, provide clear photos, port information, dimensions and installation position when the part number cannot be confirmed. Hydraulic parts that look similar in a photograph may differ in pressure rating, fitting orientation or length.
4. Electrical and Control Components
Electrical parts require careful revision control. A pressure switch, transducer, connector or cable may have the same general function as the removed item but a different range, signal, plug or mounting arrangement.
The review may include service-loop assemblies, power and control cables, sensors, pressure switches, connectors, motor cooling fans, blowers and selected control components. Record the full label, not just the component type. Photograph the connector face and the installed position as well.
For obsolete or upgraded items, technical confirmation should happen before purchase. A replacement may require wiring, parameter or interface checks. It should not be presented as a simple drop-in item unless that has been verified for the specific unit.
5. Pipe-Handling and Routine Wear Parts
Tong dies, seals, hoses, filters, small bushings and other routine wear items are easy to overlook because their individual value may be low. During an overhaul, however, one missing consumable can hold up assembly or testing.
Review consumption history from the rig and workshop. If the same item has been changed repeatedly, do not simply increase the quantity. Ask whether alignment, contamination, pressure setting or another underlying condition is driving the repeated wear.
Sort Parts by Purchasing Priority
A useful overhaul list shows when a purchasing decision must be made. The following structure is more actionable than one undifferentiated BOM.
| Priority | Typical decision | Examples | Purchasing action |
| Planned replacement | Replacement is already included in the work scope | selected seals, packing, filters and service consumables | Confirm and order before teardown |
| Inspection-based | Condition cannot be confirmed until cleaning or measurement | bearings, gears, shafts, bushings and brake parts | Pre-identify supplier and lead time; release after inspection |
| Contingency | Low-cost item can stop reassembly if unavailable | O-rings, gaskets, retainers and selected fasteners | Keep a controlled backup quantity |
| Long-lead or revision-sensitive | Technical confirmation or production time may be significant | selected electrical assemblies, service-loop items and major mechanical components | Verify configuration and availability early |
The examples are not a fixed replacement schedule. The final decision should follow the equipment manual, the approved overhaul procedure and the inspection findings for that unit.
Prepare an RFQ That Can Be Checked Quickly
Procurement speed depends on the quality of the request. A supplier can respond faster when the technical question is visible in the first email rather than spread across several follow-ups.
For each line item, include as much of the following as possible:
1. equipment model and serial number;
2. part number and revision, if shown;
3. original description from the parts book or label;
4. requested quantity;
5. installed position or system;
6. clear photos of the old part and its markings;
7. key dimensions or technical parameters;
8. condition or failure description;
9. required inspection, documentation or certification;
10. delivery destination and required date.
If the part number is unknown, say so directly. A nameplate photo, installation photo and measured dimensions are more useful than a confident but incorrect number.
For a faster review, keep one row per item and give every photo the same item number used in the RFQ. This small administrative detail prevents confusion when twenty similar images arrive in a single message.
Ask for Records That Support Receiving Inspection
The documents needed depend on the component and project requirements. Do not request the same test package for every item. Instead, agree on what the receiving team will actually check.
Depending on the part, useful records may include:
- photos showing markings and condition before shipment;
- dimensional inspection results;
- material or conformity documents when specified by the project;
- pressure, electrical or functional test records when applicable;
- packing photos and package identification;
- a final packing list linked to the purchase-order item numbers.
This information helps the receiving team confirm the shipment before the overhaul reaches the installation stage. It is especially useful when several mechanical, hydraulic and electrical items are packed together.
Avoid Replacing a Failed Part in Isolation
The failed component is evidence, not always the full diagnosis.
A damaged seal may point to surface wear or misalignment. A blocked filter may indicate contamination elsewhere in the hydraulic circuit. Repeated electrical alarms may come from a cable or connector rather than the sensor named in the alarm message. Unusual gear wear may require alignment and lubrication checks before new parts are installed.
This is where the parts plan and the overhaul plan must meet. Before releasing an order, ask three questions:
- What caused the part to fail?
- Which mating surfaces or related components need inspection?
- What cleaning, adjustment or testing is required before the new part is accepted?
Those questions do more to protect the schedule than adding unverified parts to the purchase order.
Connect the Parts Order With the Overhaul Plan
The most efficient process has two purchasing gates.
The first gate happens before teardown. Confirm planned-replacement parts, basic consumables and any long-lead components that can be identified with confidence. The second gate follows cleaning and inspection. Release condition-based items using measurements, photos and an approved inspection record.
This approach gives the workshop room to make engineering decisions without forcing procurement to start from zero after disassembly. It also creates a clear record of why each major part was ordered.
JJC TEC supports [NOV top drive spare-parts sourcing](https://www.jjctec.com/nov-top-drive-parts.html), parts identification, inspection coordination and shipment preparation. Where the work extends beyond parts supply, our [drilling equipment technical service](https://www.jjctec.com/Services.html) includes workshop overhaul, field repair, troubleshooting and control-system support for critical drilling equipment.
Common Mistakes to Avoid
Ordering by model alone
The model narrows the search, but it may not confirm the installed revision or previous modifications.
Treating the parts book as the inspection report
A parts book shows how the unit is built. It does not show the condition of the unit in front of you.
Waiting for teardown before checking availability
Inspection-based parts may wait for approval, but their likely lead times can still be checked in advance.
Replacing the visible failure only
The surrounding system should be reviewed for contamination, wear, alignment or electrical connection problems.
Accepting a vague description on the quotation
The quotation should identify what is being supplied and how it was matched to the request. Clarify whether the item is original, replacement or manufactured to an agreed specification.
FAQ
Which NOV TDS models can use the same spare parts?
Some component families may be used across more than one model, but interchangeability should never be assumed from appearance or description alone. Confirm the model, serial number, part number, revision and installed configuration before ordering.
Should all bearings and seals be ordered before a top drive overhaul?
Not automatically. Some consumables may be planned replacements, while bearings and other condition-based parts may require inspection and measurement. Use the approved overhaul procedure and the unit's actual condition to decide.
What should I send if the part number is missing?
Send the equipment nameplate, photos of the complete part, close-ups of markings and connectors, installation position, dimensions, function and failure description. Include a drawing or maintenance record if one is available.
Can one RFQ include mechanical, hydraulic and electrical parts?
Yes, but group the items by system and use consistent item numbers for the spreadsheet and photos. This makes technical checking and quotation comparison much easier.
How can I reduce waiting time during the overhaul?
Confirm long-lead and planned-replacement items before teardown, prepare suppliers for likely condition-based parts, and release the second order as soon as inspection results are approved.
