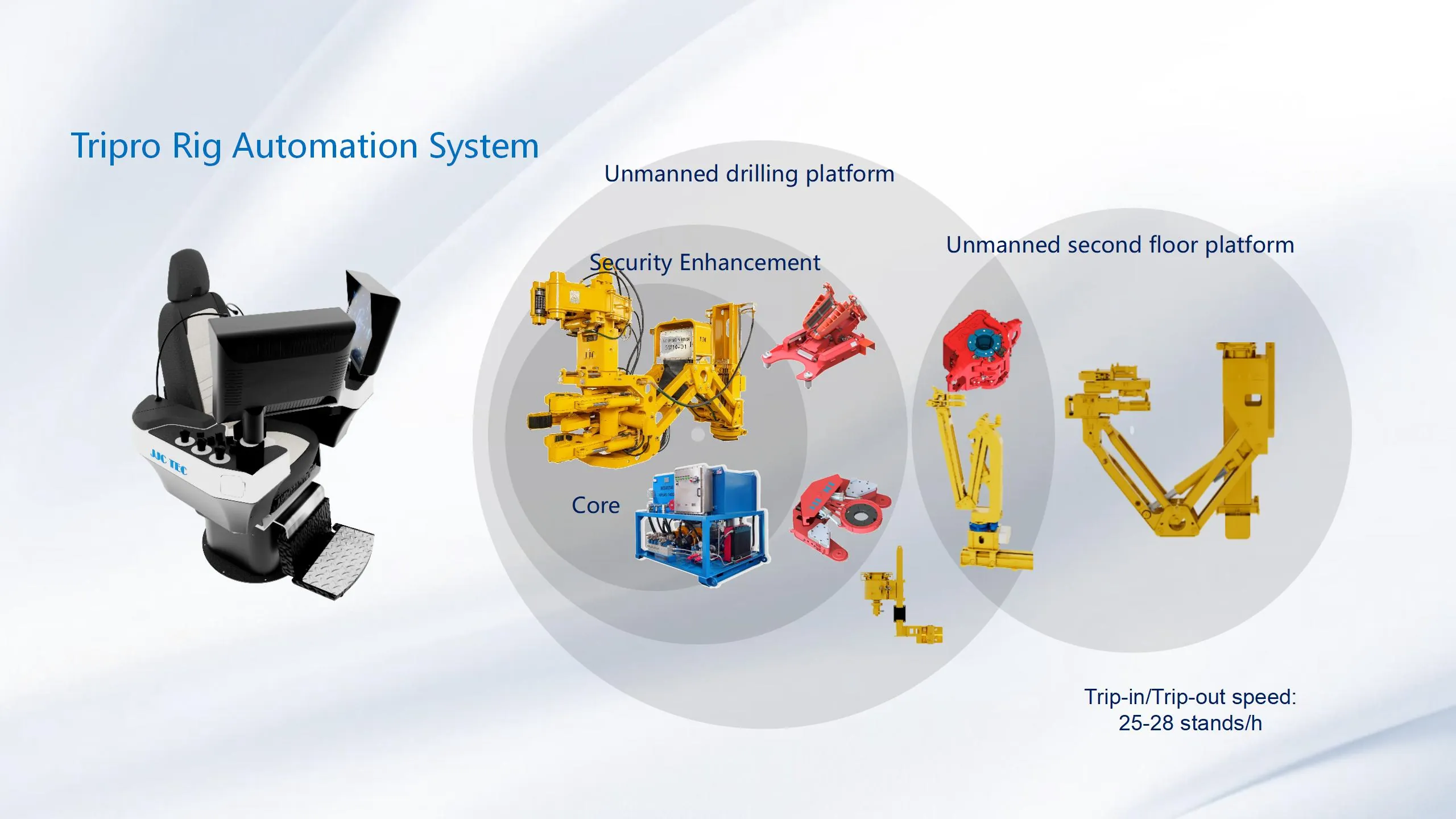

Tripro® Rig Automation System
Max. trip-in/trip-out speed 30 stands/hr,900 m/hr
The Tripro® rig automation system is a high-precision and high-efficiency drilling system including advanced equipment and control system. It fully integrates the control of the drilling platform to achieve“one button”operation. Each equipment has unique technical advantages and several patented technologies.
• Based on 3D directional quantization algorithms and machine vision. • Space management avoid collision, enhance personal and equipment safety.
Zone Management System
• Real time parameters. • Warnings and Alarms, self-diagnosis, preventative maintenance. • Historical Charts.
Product Lifecycle Management System
• 3D digital twin models, shortens development cycle, reduces risk at site. • Simulation and training during development.
Virtual commissioning
Tripro® System Intergrates:
1. Lifting System
drawworks
disk brake
automatic elevator
powered slip
2. Rotary System
top drive system
rotary table
3. Circulation System
mud pump
mechanic seal washpipe
4. Control System
centralized control
zone management system
1. Pipe Handling System
monkey board robotic arm
drill floor robotic arm
powered finger board
iron roughneck
automatic doper & mud bucket
automatic scraper
mouse hole
cathead
powered catwalk
powered pipe rack
2. Auxiliary System
hydraulic power system
Tripro® Application Cases
Despite the test of wind and sand, it can still operate stably and efficiently under the influence of level 8 winds (62-74km/h). The one click automatic process is used for drilling and tripping. The average drilling speed inside the casing is 25 columns/hour, and the fastest is 2'15 "/column (equivalent to 26.7 columns/hour).
Land application case: Western Drilling 70202 Team
The one click automatic process is used for drilling and tripping, with an average drilling speed of 26 columns/hour and a maximum speed of 2 '00 "/column (30 columns/hour) inside the casing.
