Top drive rigs have transformed the oil and gas industry. They make drilling safer, faster, and more efficient. Keeping them running requires a robust inventory of Top Drive Spare Parts to prevent costly non-productive time (NPT). This guide breaks down the essential components for maintenance.
● Top Drive Spare Parts act as a vital insurance policy for rig productivity by preventing expensive non-productive time (NPT).
● Continuous drilling operations are made possible by maintaining a robust inventory, which reduces the risk of errors and downtime.
● Essential components range from high-wear items like washpipe packing and seals to precision electronics like motors and motorized systems.
● Using a top drive system increases safety by automating many manual processes, thereby lowering the risk of accidents and injuries.
● Investing in critical spares allows for better performance in complex scenarios, such as directional or deepwater offshore drilling.

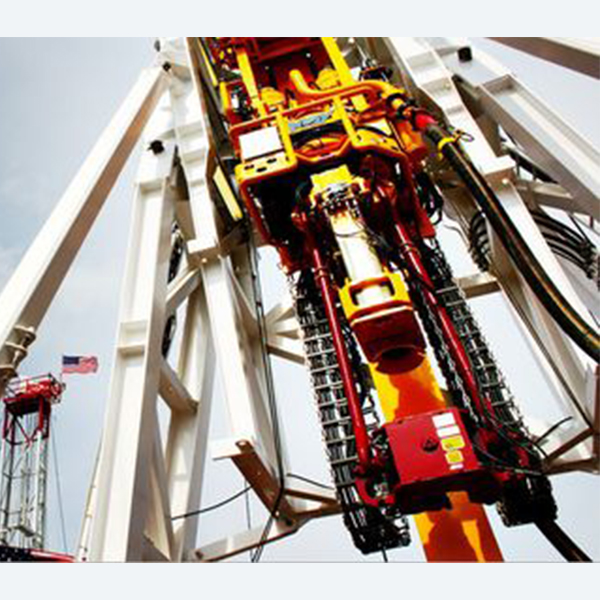

Maintaining a top drive rig involves managing a complex motorized system that rotates the drill string from the top. Because these systems move up and down the derrick continuously, certain mechanical and fluid-handling parts experience high wear and tear.
The Powerhouse: Motors and Drive Components
● Electric Top Drive Parts: You need essential brushes and windings to keep electric motors rotating the drill string efficiently.
● Hydraulic Drive Components: Replacement seals and hoses are vital for hydraulic rigs that rely on fluid pressure to generate torque.
● Mechanical Units: These rigs use gears and chains. It is critical to stock pulley systems, drive belts, and precision gears to ensure heavy-duty performance.
Fluid Circulation: Swivel and Washpipe Assemblies
● Sealing Systems: High-pressure washpipe packing and seals are necessary to prevent drilling fluid leaks as it circulates through the swivel.
● Structural Integrity: Swivel bearings must handle heavy load distribution during continuous drilling.
● Connections: Keep replacement O-rings, adapter fittings, and gooseneck connections on hand to maintain pressure integrity.
Pipe Handling: Grippers, Dies, and Inserts
● Grip and Torque: Use replaceable tong dies and backup gripper inserts to ensure secure pipe handling during rotation.
● Link Tilt: Maintain link tilt system performance with fresh bushings and pins, often secured by a heavy-duty roll pin.
● Safety Valves: IBOP (Internal Blowout Preventer) valves and repair kits are mandatory for well control safety.
Structural and Load-Bearing Components
● Mounting Hardware: Stock bail pins and heavy-duty bolts to secure the unit to the derrick.
● Vertical Travel: Guide dolly rollers and wear pads ensure smooth movement up and down the rig structure.
● Load Management: Main thrust bearings are essential for managing axial loads during deep drilling.
Control and Automation Sensors
● Precision Monitoring: An encoder is vital for tracking rotation speed, while torque sensors provide precise control for complex scenarios like directional drilling.
● System Health: Pressure transducers and temperature sensors prevent the motor and gearbox from overheating.
Essential Maintenance Parts Summary
Category | Key Spare Parts | Function |
Power | Brushes, Seals, Pulley | Rotates the drill string |
Fluid | Washpipe, Packing, O-rings | Circulates drilling fluid |
Handling | Tong Dies, IBOP Valve | Manages pipe and safety |
Control | Encoder, Torque Sensor | Provides precise operation |
Tip：Regularly inspect the spring tension in pipe-handling grippers to prevent pipe slippage during high-torque operations.
Note：Top drive rigs are like upgrading from a manual screwdriver to a power drill, but they require much more specialized maintenance to stay operational.
Modern top drive systems, especially electric types, rely heavily on sophisticated electronics to maintain precision and control. If these electronic Top Drive Spare Parts fail, the entire rig stops, regardless of mechanical health.
Variable Frequency Drive (VFD) Modules
● Thermal Management: Replacing cooling fans and filters is the best way to prevent VFD overheating in harsh environments.
● Circuit Protection: Ensure you have a fuse holder and a variety of fuses specifically rated for the high electrical loads of drilling.
Cabling and Service Loops
● Durability: You need standardized replacement plugs and connectors built for rugged, muddy environments.
● Flexibility: Power and communication cables must withstand the constant high-flex movement of the top drive moving up and down the derrick.
Control System Interface
● Operator Input: Stock HMI (Human-Machine Interface) touchscreens and replacement joysticks for the control cabin.
● Logic Modules: Keep PLC (Programmable Logic Controller) backup modules ready to swap out if the system's "brain" encounters a fault.
Hydraulic top drive rigs are the preferred choice when electric power is unavailable, but they require strict fluid management.
Pump and Filtration Essentials
● Fluid Purity: High-efficiency hydraulic fluid filters are your first line of defense against system contamination.
● Torque Consistency: Replacement hydraulic pumps are necessary to maintain the torque needed for heavy-duty drilling.
Valves and Accumulators
● Directional Control: Stock solenoid replacements and directional control valves to manage fluid flow.
● Pressure Stability: Nitrogen-charged accumulators are critical for absorbing shocks and maintaining pressure during sudden drilling changes.
Hose Management and Fitting Kits
● Precision Lines: Keep critical high-pressure hose assemblies for directional drilling, where precision is key.
● Rapid Repair: Quick-disconnect couplings and spring compression fittings allow for fast maintenance turnarounds, reducing downtime.
Note：Hydraulic systems are particularly sensitive to extreme temperatures, which may limit their use in certain unique geological conditions.
Different rig designs require different maintenance priorities to remain efficient.
Electric Top Drive Focus: Controls and CoolingFor electric rigs, focus on the VFD components and motor brushes. These provide the precision required for complex projects. You must also maintain blower motors to ensure heat dissipation during continuous operation.
Hydraulic Top Drive Focus: Seals and FluidsHydraulic rigs demand a strategic inventory of high-wear seals, especially in remote onshore locations where parts are hard to find. Managing fluid quality with manifold repair kits is the priority here.
Mechanical Top Drive Focus: Lubrication and GearingMechanical rigs are tough and reliable for heavy-duty work. Your inventory should prioritize heavy-duty gear sets, chain links, and bearing lubrication systems. Ensure you have a replacement spring for any manual engagement components.
Effective management of Top Drive Spare Parts directly affects the bottom line of any drilling project.
Reducing Downtime and NPTHaving parts on-site allows for continuous drilling, meaning you finish projects faster. It also saves money by avoiding the extreme costs of emergency air-freight for heavy components like a main motor or a large pulley.
Enhancing Safety and Risk MitigationAutomating the drilling process with a top drive already reduces manual labor risks. However, replacing worn parts like an encoder or a pressure sensor ensures the automated systems remain reliable, preventing accidents caused by equipment failure.
Optimizing Performance in Extreme EnvironmentsIn offshore drilling, rigs face high pressures and harsh conditions. Specialized spare parts kits are essential to handle these deepwater challenges and maintain the precision needed for directional drilling.
Knowing when to swap a part is as important as having the part itself.
Predictive Maintenance Protocols
● Data Usage: Use sensor data from the encoder and torque system to find failing parts before they break.
● Timing: Schedule inspections and part swaps during pipe addition windows to minimize the impact on the drilling schedule.
Training for Component-Level ReplacementOperating these rigs requires specialized training. You should equip these skilled operators with the knowledge to swap out a fuse holder or a roll pin on their own. Always stick to safety protocols when performing these repairs.
Standardization of Inventory
● Universal Parts: Choose universal adapter sizes and standard spring compression values to reduce the total number of unique parts you must stock.
● Expert Advice: Consult with experts or companies to design a customized spare parts list for your specific environmental conditions.
Note：Regular maintenance and inspections can catch small issues before they become major, expensive problems.
Top Drive Spare Parts are the essential insurance policy for modern rig productivity. Maintaining an inventory of components like encoders and seals balances initial costs with long-term savings. JJC TEC provides high-quality parts that ensure operational continuity and maximize safety. You should audit your inventory today to keep your drilling operations efficient and profitable.
A: They prevent expensive non-productive time (NPT) by ensuring immediate repairs during mechanical failures.
A: Key items include high-pressure washpipe packing, seals, and swivel bearings to prevent leaks.
A: New components like IBOP valves and sensors reduce manual labor risks and prevent accidents.
A: Yes, they have higher initial costs and require skilled operators compared to rotary tables.
